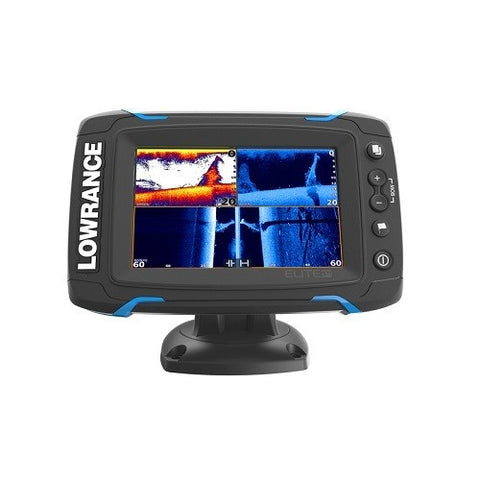

Lowrance Elite-5 Ti 5" Touch Remanufactured Fishfinder/Chartplotter
Lowrance Elite-5 Ti 5" Touch Remanufactured Fishfinder/Chartplotter 83/200/455/800kHz transom Mount Transducer with C-Map Insight Pro
Model: 055-12421-001
High-resolution touch display - LED-backlit color display with touchscreen interface provides fast, fingertip access to all Elite-Ti features
CHIRP Sonar, StructureScan® HD and DownScan Imaging™ - CHIRP Sonar offers improved fish-target separation and screen clarity, while the StructureScan® HD sonar imaging system with exclusive Lowrance DownScan Imaging™ delivers photo-like images of fish-holding structure on both sides and directly beneath your boat. StructureScan HD requires optional TotalScan™ transducer.
TrackBack™ - Rewind your CHIRP sonar, SideScan or DownScan Imaging history to review structure or fish targets and mark the location with a waypoint
Internal GPS antenna - Highly accurate, built-in GPS antenna plus a detailed U.S. map
Optional chart upgrades - Optional Americas chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics HotMaps® Premium and Fishing Hotspots® PRO. Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N and MAX-N+.
Built-in wireless connectivity - Provides access to the GoFree Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners
Xi5 Trolling Motor control via Lowrance SmartSteer™
StructureMap included with built-in StructureScan (requires optional TotalScan transducer)
Fully customizable split-screen options
Specifications
General
Display size 5in Diag
Display Type WVGA color TFT LCD
Resolution 800H x 480W
Backlight PureWhite LED
Display brightness 1200 Nits
Enviromental
Operating temperature 5°F to 131°F (-15°C to 55°C )
Waterproof IPX7 with card door closed
Electrical
Current draw 0.9A @ 13VDC with backlight on full
Operating voltage 12vDC
Supply voltage 10.8-17vDC
Under Interface
Interface Single-touch touchscreen
Chartplotter
Display modes North up, Course up (COG), Heading up (heading with external heading sensor or COG)
Optional Cartography Navico Insight HD, Navionics Platinum+/Platinum/Gold, Fishing HotSpots
Alarms No GPS fix, Anchor, Low boat speed, XTE, Waypoint radius, Arrival
Sonar
Built-In CHIRP Yes
Built-In Broadband Yes
Built-In StructureScan Yes
Sonar Frequency Mid/High CHIRP (83/200kHz) 455/800 kHz DownScan™, Low/High CHIRP (50/200kHz)
(*Available frequencies determined by connected transducer)
Broadband power 500w RMS
Sonar DownScan™ Max Depth 455/800 kHz 300ft
Sonar Broadband Max Depth Low/High (50/200 kHz) transducer 3000ft
Sonar Broadband Max Depth Mid/High (83/200 kHz) transducer 1000ft
Sonar alarms Fish, Shallow
TrackBack Yes
Comms/Interface
NMEA0183 1x RS422 port
Supported baud rates 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200
NMEA 2000 No
Cata card slot 1 micro SD card up to 32GB
GPS Navigation
GPS type Internal high-sensitivity WAAS + EGNOS + MSAS
Waypoints 3000
Routes 100
trails 100 plots with up to 10,000 points per trail
GPS alarms Anchor, Arrival, Offcourse
Background mapping World reference basemap and enhanced U.S. basemap with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m
Mappign options Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N Wide.
Dimensions 8.641" W x 6.332" H x 2.507" D
What's in the Box:
Elite-5Ti Display Remanufactured
QRB-5 bracket
000-0127-49 Powercord
000-0127-50 Fuse Kit
Documentation
83/200/455/800khz transom mount transducer
C-MAP Insight Pro - Added 01/26/2018
Model: 055-12421-001
High-resolution touch display - LED-backlit color display with touchscreen interface provides fast, fingertip access to all Elite-Ti features
CHIRP Sonar, StructureScan® HD and DownScan Imaging™ - CHIRP Sonar offers improved fish-target separation and screen clarity, while the StructureScan® HD sonar imaging system with exclusive Lowrance DownScan Imaging™ delivers photo-like images of fish-holding structure on both sides and directly beneath your boat. StructureScan HD requires optional TotalScan™ transducer.
TrackBack™ - Rewind your CHIRP sonar, SideScan or DownScan Imaging history to review structure or fish targets and mark the location with a waypoint
Internal GPS antenna - Highly accurate, built-in GPS antenna plus a detailed U.S. map
Optional chart upgrades - Optional Americas chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics HotMaps® Premium and Fishing Hotspots® PRO. Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N and MAX-N+.
Built-in wireless connectivity - Provides access to the GoFree Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners
Xi5 Trolling Motor control via Lowrance SmartSteer™
StructureMap included with built-in StructureScan (requires optional TotalScan transducer)
Fully customizable split-screen options
Specifications
General
Display size 5in Diag
Display Type WVGA color TFT LCD
Resolution 800H x 480W
Backlight PureWhite LED
Display brightness 1200 Nits
Enviromental
Operating temperature 5°F to 131°F (-15°C to 55°C )
Waterproof IPX7 with card door closed
Electrical
Current draw 0.9A @ 13VDC with backlight on full
Operating voltage 12vDC
Supply voltage 10.8-17vDC
Under Interface
Interface Single-touch touchscreen
Chartplotter
Display modes North up, Course up (COG), Heading up (heading with external heading sensor or COG)
Optional Cartography Navico Insight HD, Navionics Platinum+/Platinum/Gold, Fishing HotSpots
Alarms No GPS fix, Anchor, Low boat speed, XTE, Waypoint radius, Arrival
Sonar
Built-In CHIRP Yes
Built-In Broadband Yes
Built-In StructureScan Yes
Sonar Frequency Mid/High CHIRP (83/200kHz) 455/800 kHz DownScan™, Low/High CHIRP (50/200kHz)
(*Available frequencies determined by connected transducer)
Broadband power 500w RMS
Sonar DownScan™ Max Depth 455/800 kHz 300ft
Sonar Broadband Max Depth Low/High (50/200 kHz) transducer 3000ft
Sonar Broadband Max Depth Mid/High (83/200 kHz) transducer 1000ft
Sonar alarms Fish, Shallow
TrackBack Yes
Comms/Interface
NMEA0183 1x RS422 port
Supported baud rates 1200, 2400, 4800 (Default), 9600, 19200, 38400, 57600, 115200
NMEA 2000 No
Cata card slot 1 micro SD card up to 32GB
GPS Navigation
GPS type Internal high-sensitivity WAAS + EGNOS + MSAS
Waypoints 3000
Routes 100
trails 100 plots with up to 10,000 points per trail
GPS alarms Anchor, Arrival, Offcourse
Background mapping World reference basemap and enhanced U.S. basemap with over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m
Mappign options Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N Wide.
Dimensions 8.641" W x 6.332" H x 2.507" D
What's in the Box:
Elite-5Ti Display Remanufactured
QRB-5 bracket
000-0127-49 Powercord
000-0127-50 Fuse Kit
Documentation
83/200/455/800khz transom mount transducer
C-MAP Insight Pro - Added 01/26/2018
