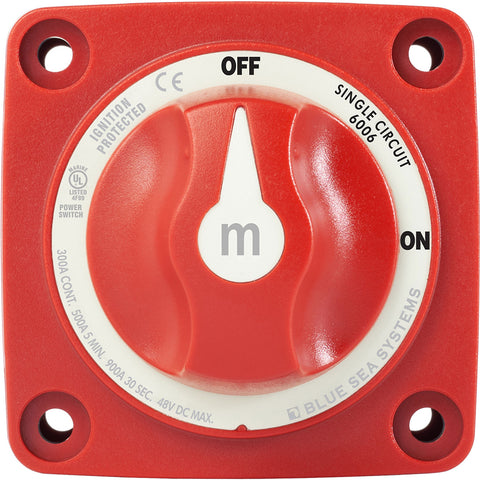

Blue Sea 6006 m-Series (Mini) Battery Switch Single Circuit ON/OFF Red

Blue Sea 6006 m-Series (Mini) Battery Switch Single Circuit ON/OFF Red

  • $ 2399
  • Save $ 1573


6006
m-Series (Mini) Battery Switch

Single Circuit ON/OFF

  • Switches a single battery to a single load group
  • Multiple switches can be used to manage several isolated circuits including cross conntecting for emergency paralleling

  • Ignition protected - Safe for installation aboard gasoline powered boats

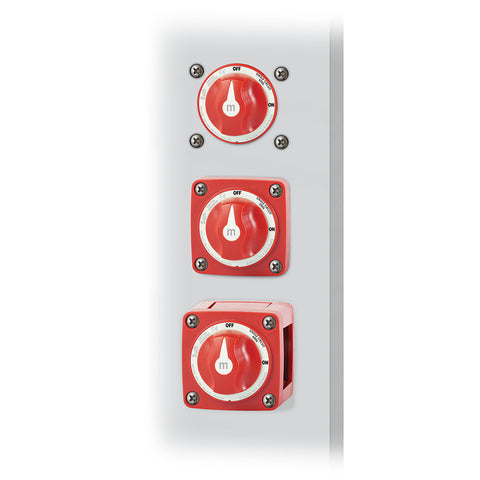

  • Case design allows surface, front panel, or rear panel mounting

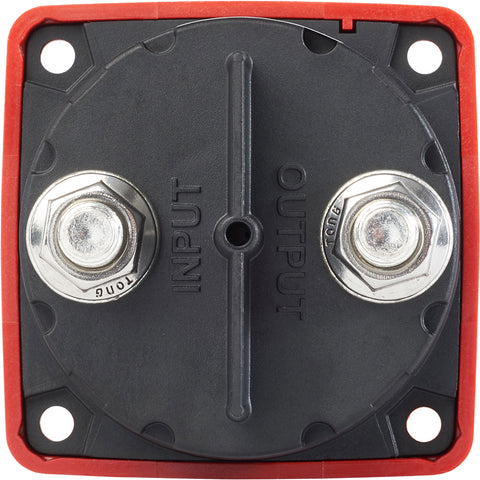

  • Isolating cover with snap-on sections protects rear contacts
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Ideal for marine or RV applications
  • All non-corrosive marine grade metals
  • Molded in durable reinforced polycarbonate
  • Tactile textures indicate knob position by feel only
  • Label with international ON/OFF legends
  • Removable key or knob remains positively retained
  • ICON label set included for circuit identification

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Positions: 1
  • Lockable: Yes
  • Continuous Amperage: 700a
  • Box Dimensions: 2"H x 4"W x 7"L WT: 0.65 lbs
  • UPC: 632085060060

Owner's Manual (pdf)
