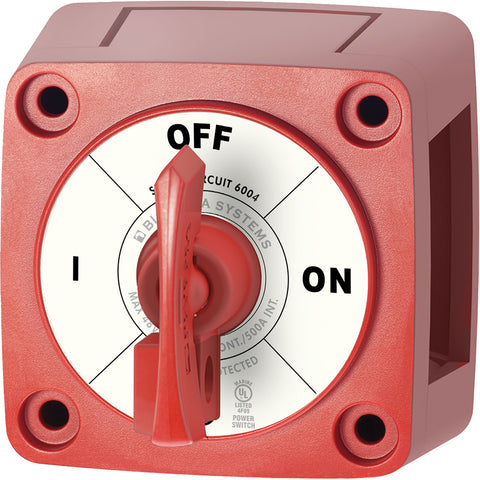

Blue Sea 6004 Single Circuit ON-OFF w/Locking Key - Red

Blue Sea 6004 Single Circuit ON-OFF w/Locking Key - Red

  • $ 2299
  • Save $ 1600


Single Circuit ON-OFF with Locking Key - Red

300 Amps continuous rating for outboards and small gasoline or diesel engines

  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • One-piece stainless flange nuts ensure safe and secure connections
  • Isolating cover protects rear contacts
  • Breakout tabs allow wire access in any direction


Specifications:
  • Switch Type: Single Circuit ON-OFF
  • Color: Red
  • Maximum Voltage: 48V DC
  • Continuous Rating: 300A
  • Intermittent Rating: 500A
  • Cranking Rating 30 sec: 900A

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Owner's Manual (pdf)
