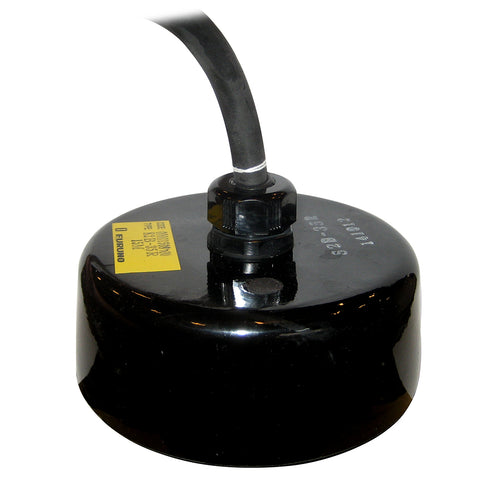

Furuno CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)

Furuno CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)

  • $ 1,60699
  • Save $ 28801


CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)

Furuno's CA82B-35R transducer has a wide bandwidth of 65kHz-110kHz, and is usable with the FCV295, FCV292*, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3. When used with the FCV1100/1200, sensitivity remains high even if the frequency is shifted +/- 10% to suppress interference.

The CA82B-35R may be installed in the tank of the CA88B-10 or CA100B-10R. When retrofitting these or other transducers, the directional pattern and sidelobe characteristics of the beam will be different, and therefore the sounder image may differ from previous installations.

Features:

  • 2kW
  • Selectable frequency - 65kHz to 110kHz
  • Beam angle becomes sharper at higher frequencies: 68kHz = 12.5°, 88kHz = 9.6°, 107kHz = 7.7°
  • Rugged FRP construction - tank mounted
  • 15 meter cable
  • No connector provided


*88kHz frequency only

Shipping Information: 12 lbs, 14 x 14 x 9

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Speed Included: No
  • Temperature: No
  • Cable Length (Feet): 50'
  • Box Dimensions: 8"H x 14"W x 14"L WT: 13 lbs
  • UPC: 611679309099
