Guest 10AMP - 12/24V 2 Bank 120V Input On-Board Battery Charger

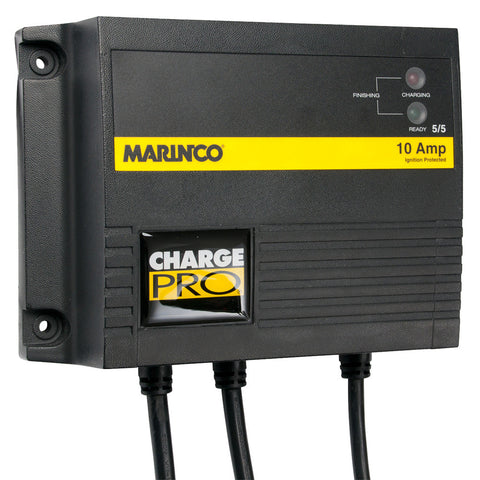

10AMP - 12/24V 2 Bank 120V Input On-Board Battery Charger
These onboard chargers have the same housing and mounting dimensions as our traditional Charge Pro Guest chargers with a number of performance enhancements.
Features:
- Charge flooded, AGM or Gel batteries
- Microprocessor controlled for accurate charging
- Universal input 120/230V input for go-anywhere freedom
- Intuitive operation
- Sense-Send™ technology senses the power needs of each battery and sends correct charge
- Isolated outputs
- Outputs can be put in series or parallel for higher voltage or current
- Completely sealed, epoxy filled
- IP68 waterproof
- Designed for harsh marine and industrial environments - moisture, salt, shock and vibration tested
- Non corroding housing for ultimate reliability
- Meet global industry standards including UL*, CE, CSA, ABYC, California efficiency regulations (CEC)
- Footprint same as former Charge Pro Guest Chargers
- ConnectCharge Plug for easy assembly to inlet (Item #150CCI) with no wiring
* UL certification pending
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Charger Output Voltage: 12/24v
- Charger Output - Amps: 10a
- Charging Banks: 2
- Portable: No
- Charger Input - Voltage: 120/230v
- Box Dimensions: 3"H x 9"W x 9"L WT: 6.1 lbs
- UPC: 093344058264
Owner's Manual (pdf)
